Virtual Design & 3D Scanning

How Cortex Delivers Virtual Design & 3D Planning

Virtual design is embedded into nearly every Cortex project and supports all phases of planning, engineering, procurement and construction execution.

Integrated 3D Modeling for Project Planning and Execution

Combining laser scanning with coordinated 3D modeling helps teams confirm fit, validate process layouts and address any concerns before work begins in the field. Virtual design is embedded into nearly every Cortex project and supports all phases of planning, engineering, procurement and construction execution.

Combining laser scanning with coordinated 3D modeling helps teams confirm fit, validate process layouts and address any potential issues before work begins in the field.

Analyze Existing Conditions

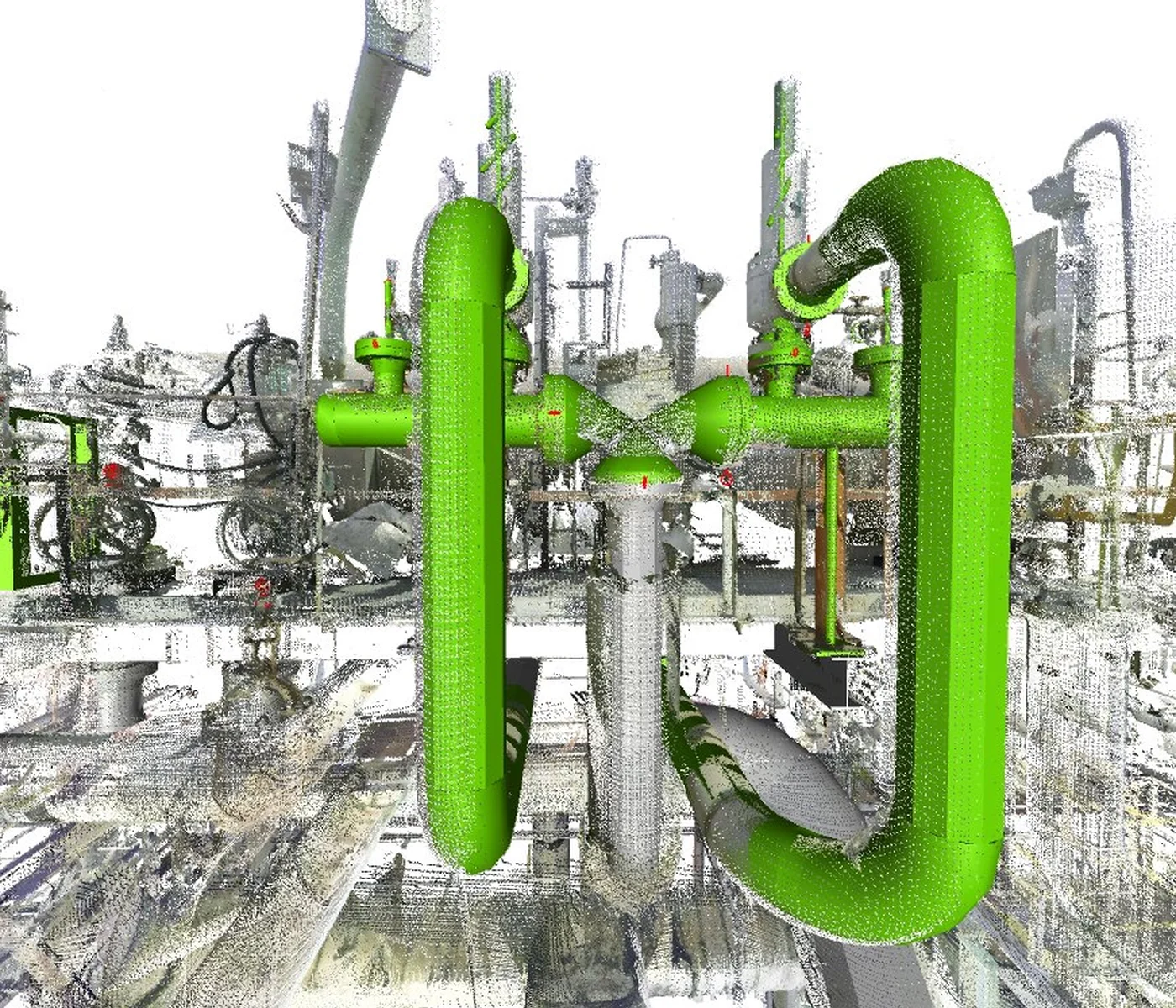

We perform high-precision 3D laser scanning of operating facilities to capture as-built conditions of structural, mechanical, utility, and electrical equipment. Capturing existing conditions early allows for more informed initial layouts and design and identification of constraints that could impact the project before work begins

Capabilities include:

  • High-accuracy 3D laser scanning creates a point cloud of measurements along with 360 degree pictures
  • As-built models of existing facilities created from the 3D scan utilizing high value resources to minimize costs
  • Field verification of existing equipment and utilities
  • Digital representation of active plant environments

Process & Equipment Layout Validation

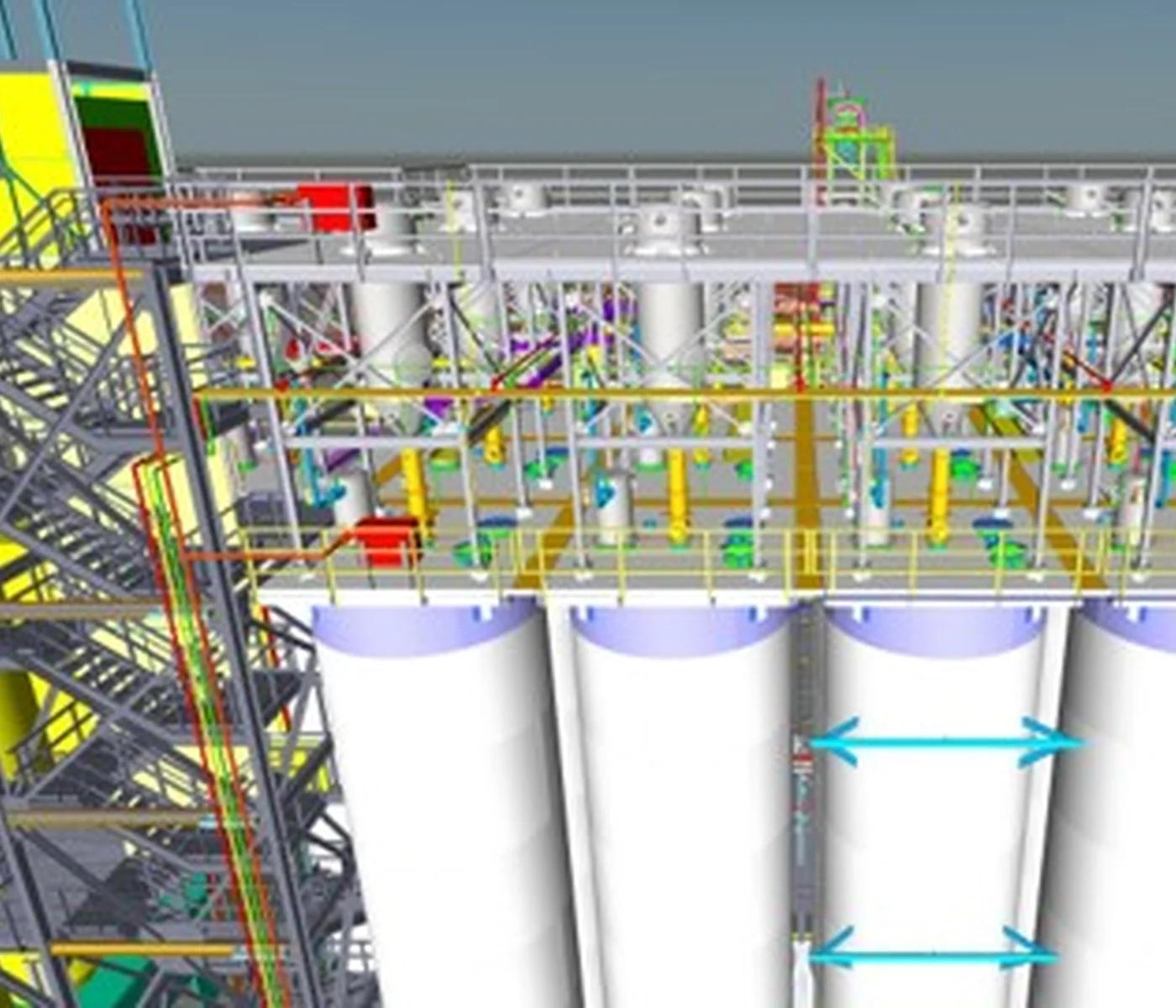

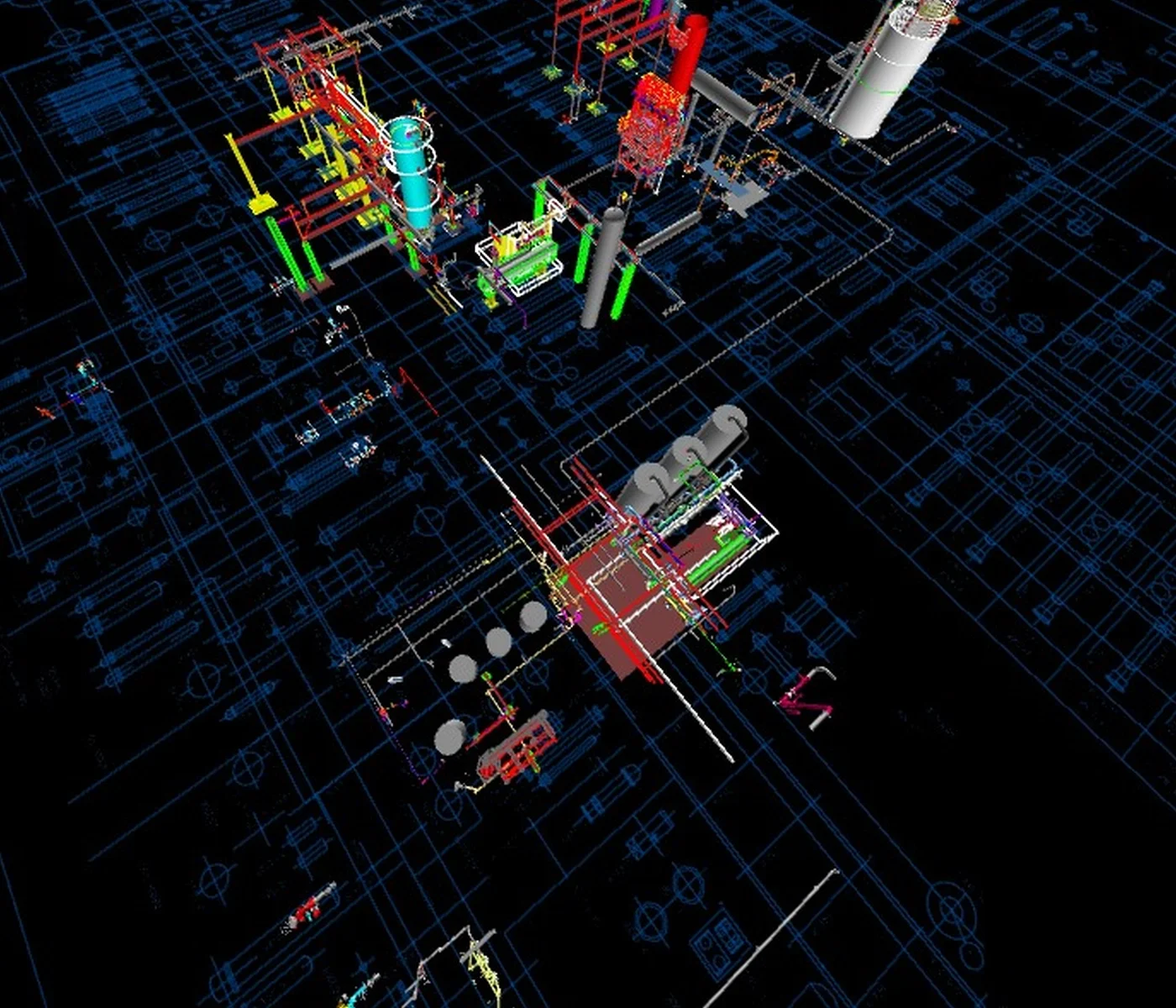

We develop coordinated 3D layouts that integrate process equipment, piping, structural elements, and utilities. This eliminates errors, saves time and effort during installation, and ensures systems will operate as intended upon install.

Capabilities include:

  • Equipment placement and routing studies
  • Piping and utility integration modeling
  • Clash detection across disciplines
  • Space and access validation for maintenance and operations

Cost Accuracy & Procurement Support

Modeled systems generate detailed material takeoffs and installation costs that allow contractors to bid on projects with greater precision.

Capabilities include:

  • Quantity takeoffs linked to modeled systems
  • Digital bill-of-material generation
  • Support for contractor bid accuracy
  • Installation sequencing review

Construction & Validation Support

During construction and startup, the model serves as a reference to confirm alignment between design intent and installed systems. This supports validation efforts prior to full production.

Capabilities include:

  • Constructability review prior to fabrication
  • Installation sequence planning
  • Model reference during commissioning
  • Support for equipment and process validation
Industries

Who This Service Supports

Modeling supports planning, design coordination, cost development and execution, and is applied across nearly all Cortex projects regardless of industry.
