Civil/Structural Design

Civil & Structural Design for Facilities

Civil and structural services support new facilities, plant expansions, equipment installations and infrastructure upgrades with PE stamping for permitting.

Structural and Site Engineering for Industrial Facilities

Civil and structural design support the physical infrastructure required for industrial operations. Foundations, steel structures, containment systems and site work must align with process loads, equipment requirements and long-term facility plans.

At Cortex, civil and structural systems are developed in coordination with process, mechanical, and utility design to ensure constructability and operational reliability.

Structural Analysis & Support Design

Structural systems are developed to support process equipment, piping loads and operating conditions.

We analyze loading requirements and design steel structures that meet code requirements and integrate with mechanical systems.

Capabilities include:

  • Structural steel platform design
  • Equipment support structures
  • Pipe rack and bridge design
  • Structural analysis for process loads
  • Evaluation of existing structural capacity

Foundations & Equipment Anchorage

Process and mechanical systems require foundations designed for equipment weight, seismic loads, winds, and operational forces. We develop foundation plans and anchorage details that support installation and long-term performance.

Capabilities include:

  • Equipment foundation design
  • Anchor bolt and baseplate coordination
  • Vibration and load consideration
  • Foundation upgrades for equipment replacement
  • Integration with underground utilities
  • Containment for tanks and loading and unloading stations

Integrated Modeling & Constructability Review

Civil and structural systems are coordinated with process and mechanical layouts prior to construction.

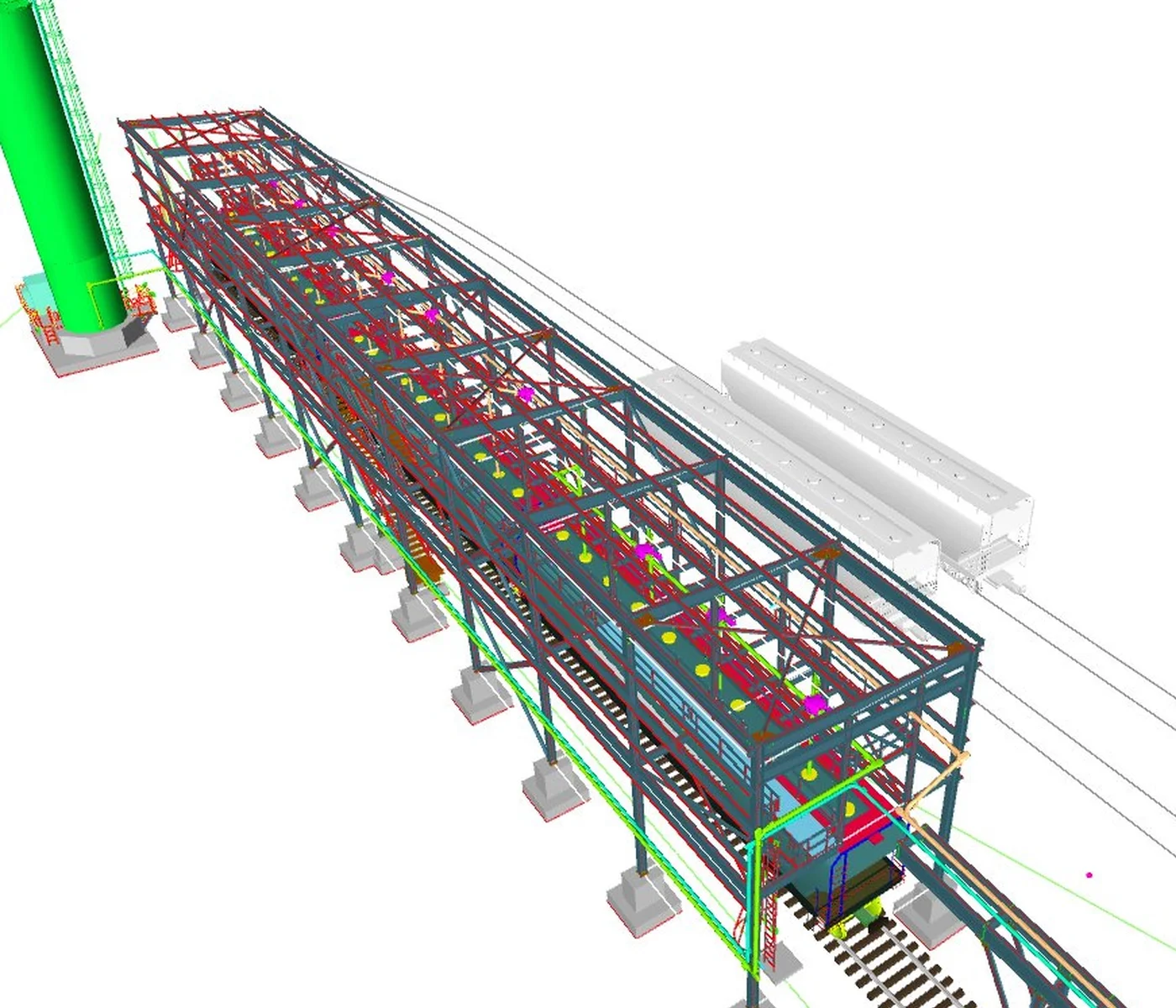

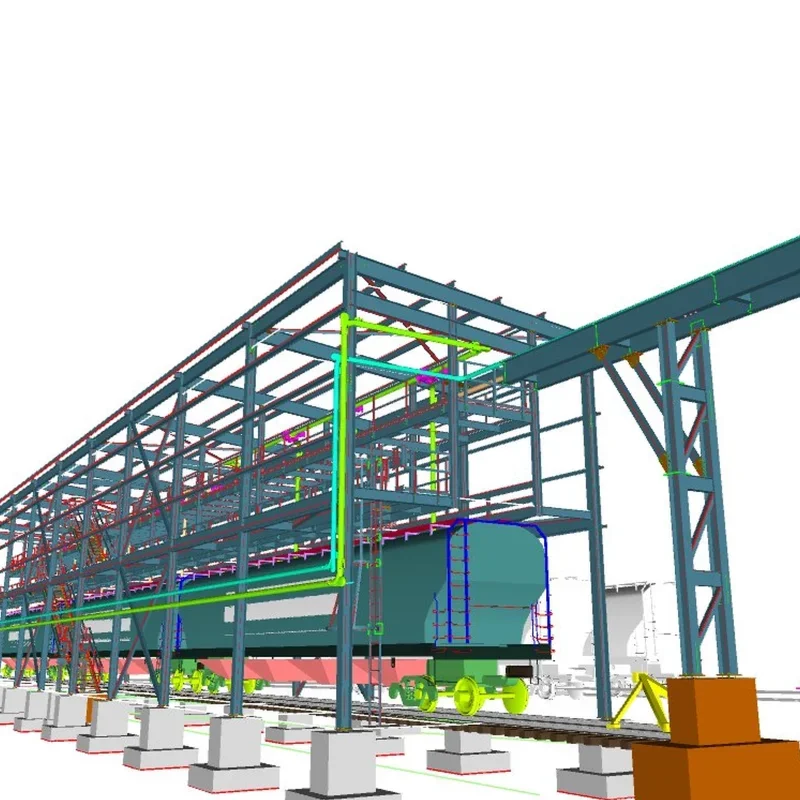

Where appropriate, 3D modeling is used to confirm structural clearances, support routing and equipment access. Final drawing packages are developed to support fabrication and installation.

Capabilities include:

  • Structural coordination within integrated models
  • Clash detection between steel and process systems
  • Development of accurate structural BOM’s and weights for estimates throughout the project
  • Development of Issue for Construction Drawing Packages
